• Wheels, 4 - 22" x 9" (55.9 cm x 22.9 cm) 7-spoke chromed aluminum
• Tires, P285/45R22, all-season, blackwall TL AL2 (Includes (P56) 22" x 9" (55.9 cm x 22.9 cm) 7-spoke chromed aluminum wheels. Requires (Z95) Magnetic Ride Control.)
• Tire, full-size spare, P265/70R17-113S blackwall
• Tire carrier, lockable outside spare
• Sunroof, power, tilt-sliding with express-open/-close and wind deflector
• Luggage rack, roof-mounted with chrome accents
• Luggage rack center rails
• Assist steps, Black with chrome accents mounted between the front and rear wheels
• Moldings, color-keyed bodyside with chrome accents
• Fascia, front, body-color
• Fascia, rear, body-color
• Headlamps, Twilight Sentinel automatic delay (Included with HID headlamps.)
• Headlamps, IntelliBeam
• Fog lamps, front rectangular halogen, integral in front fascia
• Tail lamps, LED illumination
• Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield, driver- and front passenger-side glass)
• Mirrors, outside heated power-adjustable, power-folding and driver-side auto-dimming, color-keyed with integrated turn signal indicators, ground illumination and programmable to provide curb view when in reverse
• Wipers, front intermittent
• Wiper, rear intermittent with washer
• Door handles, chrome
• Body, liftgate with deep-tinted liftglass includes rear-window wiper/washer and defogger
• Body, power liftgate

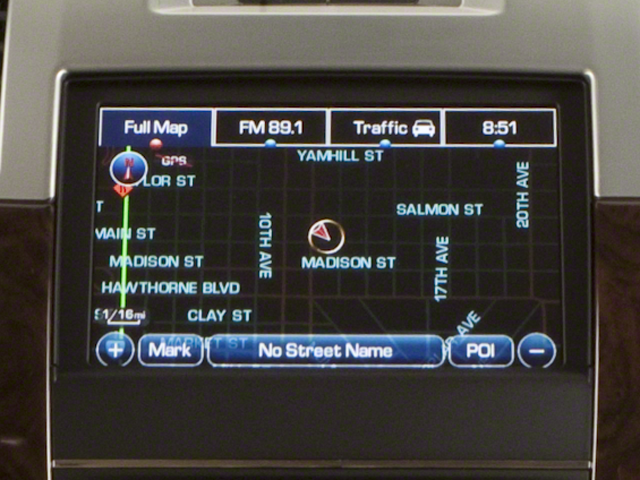

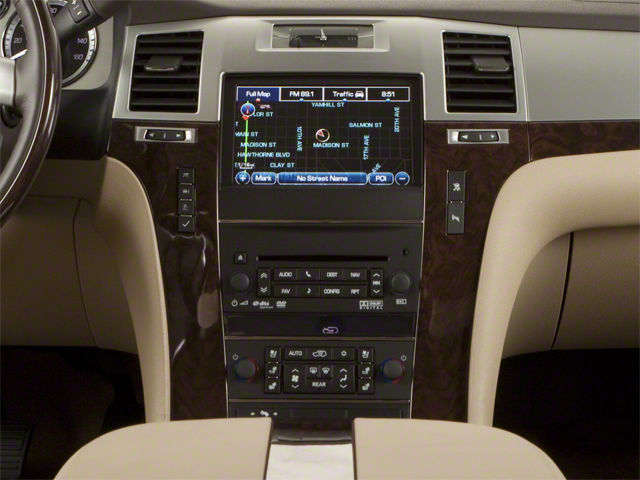

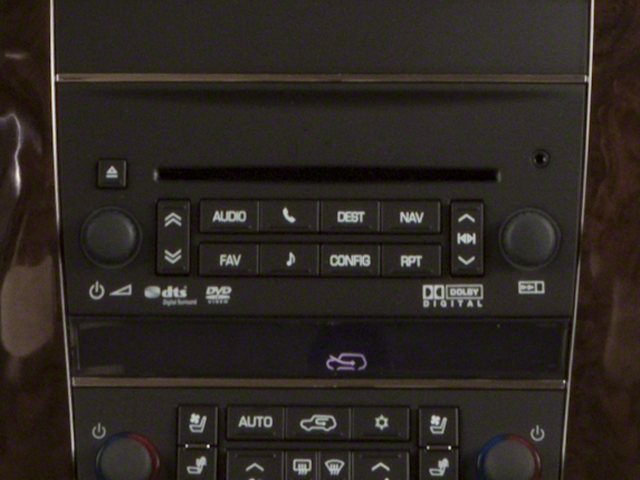

• Audio system with DVD navigation, ETR AM/FM/XM stereo with single DVD map disc, 6-disc MP3/CD/DVD Video/Audio changer DSP, RDS, clock, voice recognition and USB interface
• XM NavTraffic enhances your vehicle's GPS navigation system by showing real-time traffic data when it's needed most - while you're driving. Available in over 80 markets, XM NavTraffic displays construction, road closures and accidents so you can get to your destination faster. Available in select models. (Required XM Radio and NavTraffic monthly subscriptions sold separately after trial period. XM NavTraffic only available in select markets. For more information, see www.xmradio.com/navtraffic.)
• Audio system feature, Bose 5.1 Cabin Surround Sound system with 10 speakers
• Audio system controls, rear with 2 headphone jacks (headphones not included) and controls for volume, station selection and media
• Audio system feature, USB port, located inside center console, radio interface
• Bluetooth® for phone, personal cell phone connectivity to vehicle audio system and HMI (Human Machine Interface) (Included with (UE1) OnStar 1-year Directions and Connections Plan.)

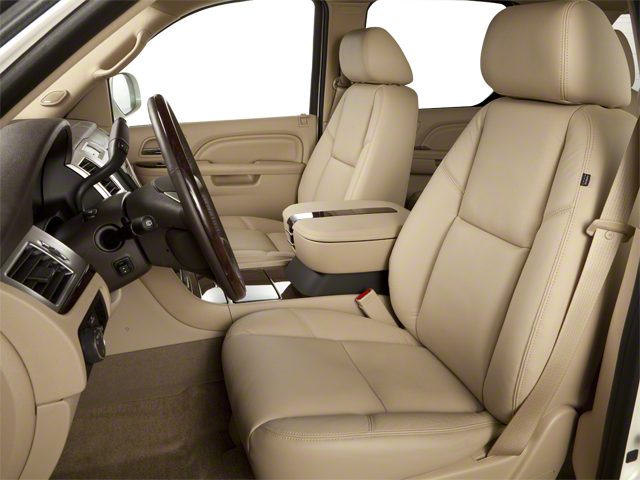

• Seats, front bucket with leather seating surfaces, driver and front passenger 14-way power seat adjusters, 4-way power lumbar control, independently heated driver and front passenger seat cushions and seatbacks (3 settings), 2-position driver memory and articulating outboard head restraints

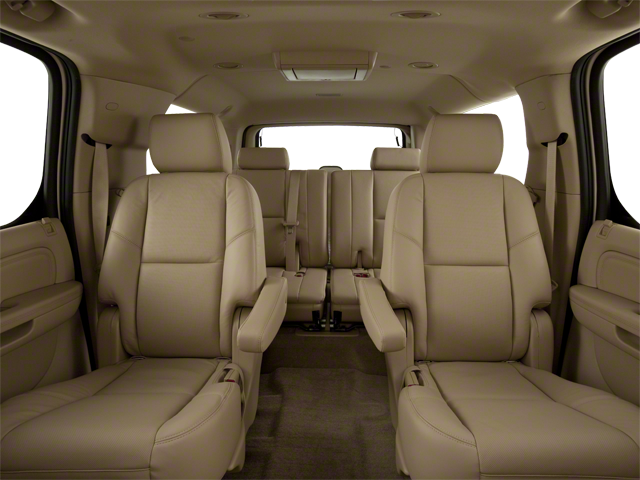

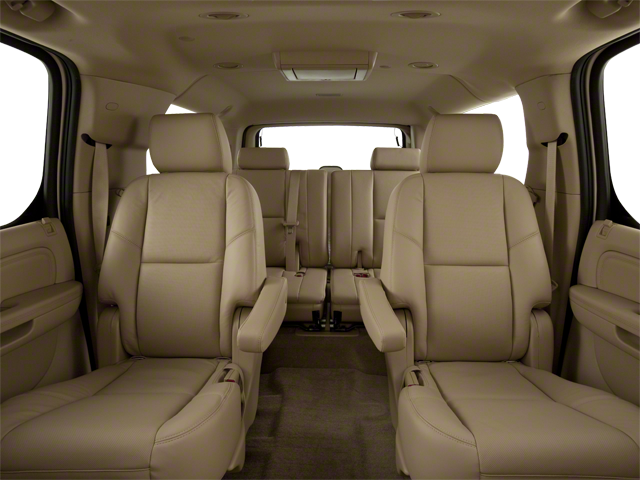

• Seats, second row bucket with leather seating surfaces, reclining with heated seat cushions (3 settings) and fold-down armrests
• Seat release, second row, power release only
• Seats, heated and cooled, seat cushion and seat back for driver and front passenger
• Seats, third row 50/50 split-bench with leather-appointed seating, 3-passenger can be folded, tumbled forward or totally removed

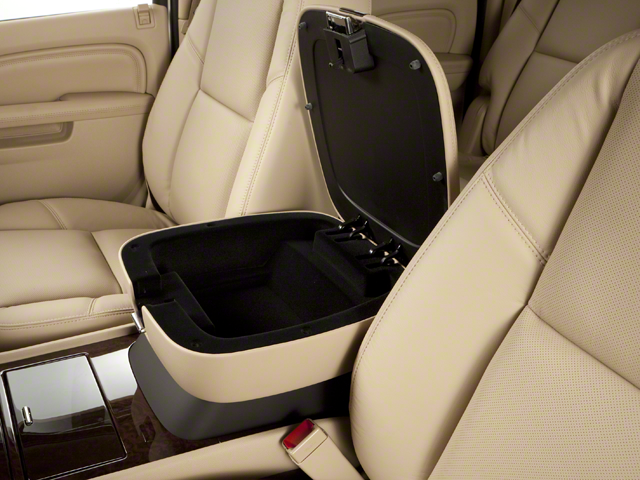

• Console, floor with damped-door storage covers, large storage bin, analog clock, dual cup holders, rear seat audio and electronic climate controls and second row heated seat controls
• Floor covering, color-keyed carpeting
• Floor mats, color-keyed carpeted first and second row with cargo area mat

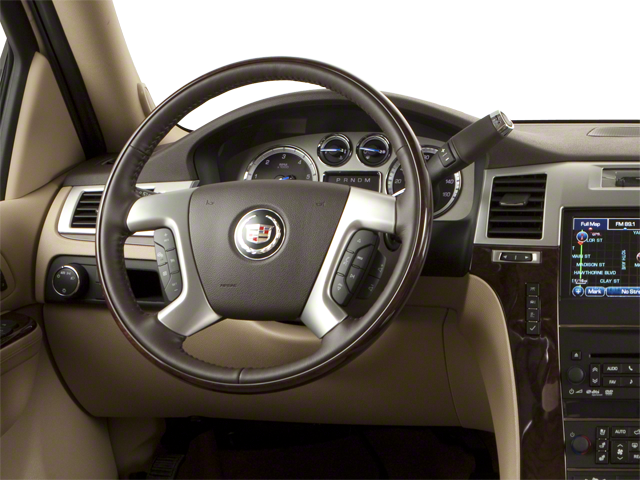

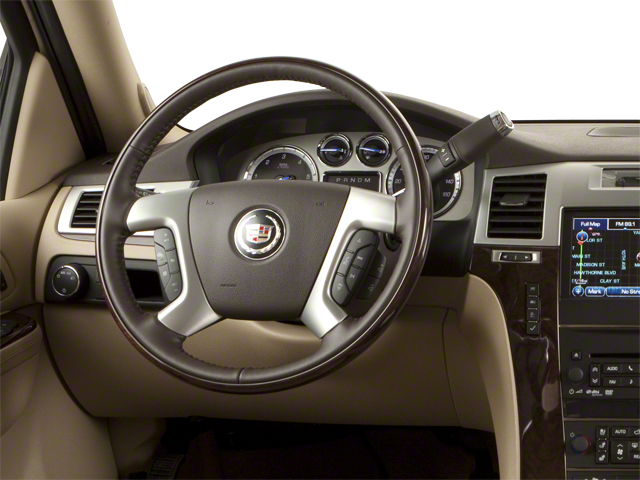

• Steering wheel, power-tilt, color-keyed with wood and leather-wrapped rim, locking
• Steering wheel, heated
• Steering wheel controls, mounted audio and Driver Information Center controls
• Tow/haul mode selector, button located at end of shift lever
• Driver Information Center with programmable personalization features such as door locking and unlocking, a trip computer that contains trip odometer and individual tire pressure readouts, fuel information such as range, average mpg, gallons used and oil life and a message center that displays dozens of system messages such as low fuel, door ajar, security, seat belt reminder, low coolant and oil pressure low

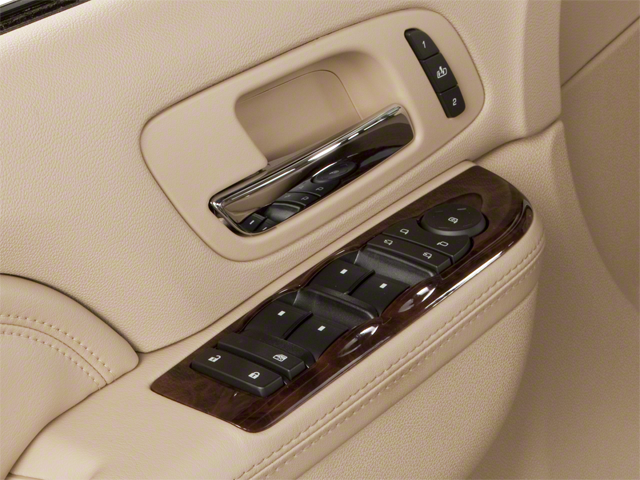

• Windows, power with driver and front passenger Express-Up/Down and lockout features
• Door locks, power programmable with lockout protection and power lock for liftgate
• Pedals, power-adjustable for accelerator and brake
• Remote Keyless Entry
• Remote vehicle start
• Universal Home Remote includes garage door opener, 3-channel programmable
• Cruise control, electronic with set and resume speed
• Theft-deterrent system, vehicle, PASS-Key III+
• Climate control, tri-zone automatic with individual climate settings for driver, right-front passenger and rear passengers
• Climate control, rear air conditioning
• Climate control, rear heat
• Defogger, rear-window electric
• Cup holders, quad front, dual second row and single third row
• Console, overhead deluxe with reading lights and (UG1) Universal Home Remote (Includes sunroof controls)
• Mirror, inside rearview auto-dimming, includes OnStar controls.
• Visors, driver and front passenger illuminated vanity mirrors with extenders
• Lighting, interior courtesy with theater dimming

• Brakes, 4-wheel antilock, 4-wheel disc, VAC power
• StabiliTrak, vehicle stability enhancement system with Rollover Mitigation includes disable switch
• Traction control, all-speed, electronic
• Daytime Running Lamps with automatic exterior lamp control
• Rear Parking Assist, Ultrasonic with rearview LED display audible warning and instrument panel-mounted shutoff switch
• Rearview camera system
• Side Blind Zone Alert
• Air bags, dual-stage frontal, driver and right-front passenger with Passenger Sensing System (Always use safety belts and the correct child restraints for your childs age and size. Even in vehicles equipped with air bags and the Passenger Sensing System, children are safer when properly secured in a rear seat. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. See the vehicles Owners Manual and child safety seat instructions for more safety information.)
• Air bags, head curtain side-impact, first, second and third row outboard seating positions with rollover sensor (Head curtain side air bags are designed to help reduce the risk of head and neck injuries to front and outboard rear seat occupants on the near side of certain side-impact collisions. Always use safety belts and the correct child restraints for your childs age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicles Owners Manual and child safety seat instructions for more safety information.)
• Passenger Sensing System, sensor indicator inflatable restraint, front passenger/child/presence detector (Always use safety belts and the correct child restraints for your childs age and size. Even in vehicles equipped with air bags and the Passenger Sensing System, children are safer when properly secured in a rear seat. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. See the vehicles Owners Manual and child safety seat instructions for more safety information.)
• OnStar, 1-year of Directions and Connections plan. Includes Automatic Crash Response, Emergency Services, Crisis Assist, Stolen Vehicle Assistance featuring Stolen Vehicle Slowdown and Remote Ignition Block, Remote Door Unlock, Roadside Assistance, Remote Horn and Lights, innovative easy to use Turn-by-Turn Navigation with Destination Download and OnStar eNav (where available), Hands Free Calling, OnStar Vehicle Diagnostics, and Low Mileage Discount (OnStar services require vehicle electrical system (including battery), wireless service and GPS satellite signals to be available and operating for features to function properly. OnStar acts as a link to existing emergency service providers. Turn-by-Turn Navigation requires ABS and Directions & Connections plan. Not available in certain areas. Visit onstar.com for coverage map. Vehicle diagnostics capabilities vary by model. Remote door unlock success varies with conditions. Ability to locate stolen vehicles varies with conditions. Subscription Service Agreement required. Call 1-888-4ONSTAR (1-888-466-7827) or visit onstar.com for OnStar's Terms and Conditions, Privacy Policy and details and system limitations.)
• Safety belts, first and second row belts to body, third row belts to seat, lap and shoulder all seating positions
• Door locks, child rear security
• Tire Pressure Monitor (does not apply to spare tire)

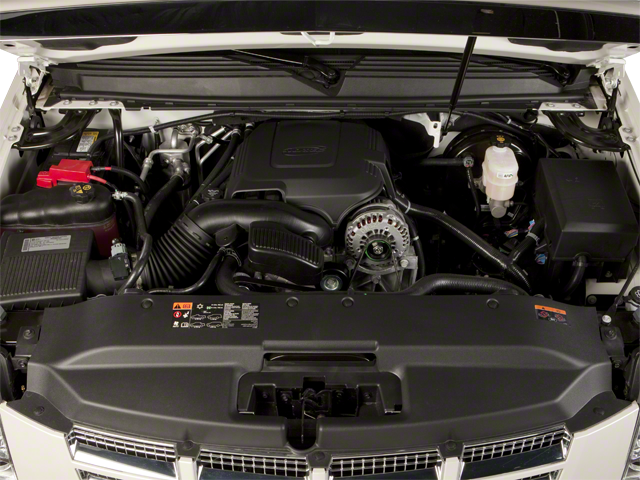

ENGINE, VORTEC 6.2L VARIABLE VALVE TIMING V8 SFI , ACTIVE FUEL MANAGEMENT, WITH E85 FLEXFUEL CAPABILITY

• (403 hp [300.5 kW] @ 5700 rpm
• 417 lb-ft of torque [562.9 N-m] @ 4300 rpm) (STD)

• Engine
• Vortec 6.2L Variable Valve Timing V8 SFI
• Active Fuel Management
• with E85 FlexFuel capability (403 hp [300.5 kW] @ 5700 rpm
• 417 lb-ft of torque [562.9 N-m] @ 4300 rpm)
• Throttle control
• electronic
• Cooling
• external engine oil cooler
• Cooling
• external transmission oil cooler
• heavy-duty air-to-oil
• Differential
• heavy-duty locking rear
• Rear axle
• 3.42 ratio
• Battery
• heavy-duty with rundown protection and retained accessory power
• Alternator
• 160 amps
• Trailering equipment
• heavy-duty includes trailering hitch platform
• 7-wire harness with independent fused trailering circuits and 7-way sealed connector
• GVWR
• 7400 lbs. (3357 kg) (AWD Model only.)
• Suspension
• front independent
• SLA
• coil over shock and stabilizer bar
• Suspension
• rear 5-link coil springs
• Suspension Package
• Magnetic Ride Control (Included with (P56) 22" x 9" (55.9 cm x 22.9 cm) 7-spoke chromed aluminum wheels and all 22" LPO wheels)
• Automatic level control
• heavy-duty
• air
• Steering
• power
• rack-and-pinion
• Tire
• full-size spare
• P265/70R17-113S blackwall
• Tire carrier
• lockable outside spare
• Sunroof
• power
• tilt-sliding with express-open/-close and wind deflector
• Assist steps
• Black with chrome accents mounted between the front and rear wheels
• Moldings
• color-keyed bodyside with chrome accents
• Fascia
• front
• body-color
• Fascia
• rear
• body-color
• Headlamps
• Twilight Sentinel automatic delay (Included with HID headlamps.)
• Headlamps
• IntelliBeam
• Fog lamps
• front rectangular halogen
• integral in front fascia
• Tail lamps
• LED illumination
• Mirrors
• outside heated power-adjustable
• power-folding and driver-side auto-dimming
• color-keyed with integrated turn signal indicators
• ground illumination and programmable to provide curb view when in reverse
• Door handles
• chrome
• Body
• power liftgate
• XM NavTraffic enhances your vehicle's GPS navigation system by showing real-time traffic data when it's needed most - while you're driving. Available in over 80 markets
• XM NavTraffic displays construction
• road closures and accidents so you can get to your destination faster. Available in select models. (Required XM Radio and NavTraffic monthly subscriptions sold separately after trial period. XM NavTraffic only available in select markets. For more information
• see www.xmradio.com/navtraffic.)
• Audio system feature
• Bose 5.1 Cabin Surround Sound system with 10 speakers
• Bluetooth® for phone
• personal cell phone connectivity to vehicle audio system and HMI (Human Machine Interface) (Included with (UE1) OnStar 1-year Directions and Connections Plan.)
• Seat release
• second row
• power release only
• Floor covering
• color-keyed carpeting
• Steering wheel
• power-tilt
• color-keyed with wood and leather-wrapped rim
• locking
• Steering wheel
• heated
• Steering wheel controls
• mounted audio and Driver Information Center controls
• Instrumentation
• analog with speedometer
• odometer
• fuel level
• engine temperature and tachometer
• Windows
• power with driver and front passenger Express-Up/Down and lockout features
• Pedals
• power-adjustable for accelerator and brake
• Remote vehicle start
• Cruise control
• electronic with set and resume speed
• Theft-deterrent system
• vehicle
• PASS-Key III+
• Cup holders
• quad front
• dual second row and single third row
• Mirror
• inside rearview auto-dimming
• includes OnStar controls.
• Visors
• driver and front passenger illuminated vanity mirrors with extenders
• Lighting
• interior courtesy with theater dimming
• Brakes
• 4-wheel antilock
• 4-wheel disc
• VAC power
• Daytime Running Lamps with automatic exterior lamp control
• Rear Parking Assist
• Ultrasonic with rearview LED display audible warning and instrument panel-mounted shutoff switch
• Rearview camera system
• Side Blind Zone Alert
• Air bags
• head curtain side-impact
• first
• second and third row outboard seating positions with rollover sensor (Head curtain side air bags are designed to help reduce the risk of head and neck injuries to front and outboard rear seat occupants on the near side of certain side-impact collisions. Always use safety belts and the correct child restraints for your childs age and size
• even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicles Owners Manual and child safety seat instructions for more safety information.)
• Safety belts
• first and second row belts to body
• third row belts to seat
• lap and shoulder all seating positions
• Door locks
• child rear security

• Vehicle
• Rear Door Type: Liftgate
• Mileage
• Fuel Economy Est-Combined (MPG): 15
• EPA Fuel Economy Est - City (MPG): 13
• EPA Fuel Economy Est - Hwy (MPG): 20
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 160
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 16.6
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3600
• Gross Axle Wt Rating - Rear (lbs): 4200
• Curb Weight - Front (lbs): 3031
• Curb Weight - Rear (lbs): 2954
• Gross Vehicle Weight Rating Cap (lbs): 7400
• Gross Combined Wt Rating (lbs): 14000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7700
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1155
• Suspension
• Suspension Type - Front: Coil springs
• Suspension Type - Rear: Multi-link
• Spring Capacity - Front (lbs): 3600
• Spring Capacity - Rear (lbs): 4200
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 3925
• Axle Capacity - Rear (lbs): 4200
• Axle Ratio (:1) - Front: 3.42
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): 46
• Shock Absorber Diameter - Rear (mm): 46
• Stabilizer Bar Diameter - Front (in): 1.41
• Stabilizer Bar Diameter - Rear (in): 1.10
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.0 x 1.2
• Rear Brake Rotor Diam x Thickness (in): 13.6 x 0.8
• Tires
• Front Tire Order Code: QST
• Rear Tire Order Code: QST
• Spare Tire Order Code: ZRS
• Front Tire Size: P285/45R22
• Rear Tire Size: P285/45R22
• Spare Tire Size: P265/70R17
• Wheels
• Front Wheel Size (in): 22 x 9
• Rear Wheel Size (in): 22 x 9
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Aluminum
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.75
• Steering Ratio (:1), At Lock: 3.0
• Turning Diameter - Curb to Curb (ft): 39.0
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31
• Fuel Tank Location: - TBD -
• Doors
• Side Door Type: Swing-out
• Exterior Dimensions
• Wheelbase (in): 130.0
• Length, Overall w/rear bumper (in): 222.9
• Width, Max w/o mirrors (in): 79.1
• Height, Overall (in): 75.5
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Step Up Height - Side (in): 21.5
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): - TBD -
• Cargo Area Length @ Floor to Seat 1 (in): - TBD -
• Cargo Area Length @ Floor to Seat 2 (in): - TBD -
• Cargo Area Length @ Floor to Seat 3 (in): - TBD -
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): - TBD -
• Cargo Box (Area) Height (in): - TBD -
• Cargo Volume to Seat 1 (ft³): 137.4
• Cargo Volume to Seat 2 (ft³): 90.0
• Cargo Volume to Seat 3 (ft³): 45.8
• Interior Dimensions
• Passenger Capacity: 7
• Front Head Room (in): 41.1
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.3
• Front Hip Room (in): 64.4
• Second Head Room (in): 38.5
• Second Leg Room (in): 39.5
• Second Shoulder Room (in): 65.2
• Second Hip Room (in): 61.8
• Third Head Room (in): 38.1
• Third Leg Room (in): 34.9
• Third Shoulder Room (in): 64.7
• Third Hip Room (in): 49.4
• Summary

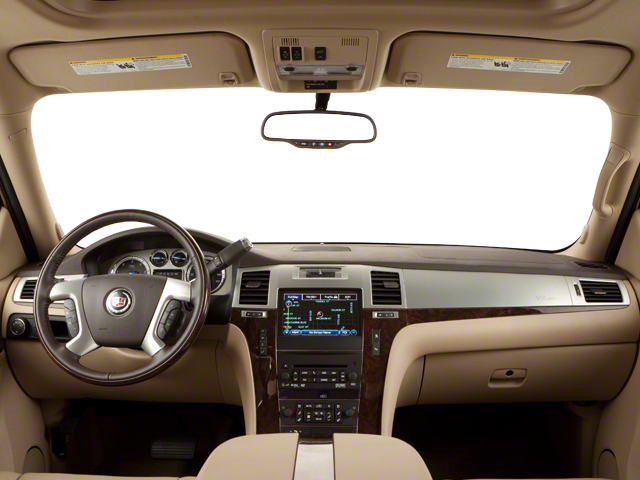

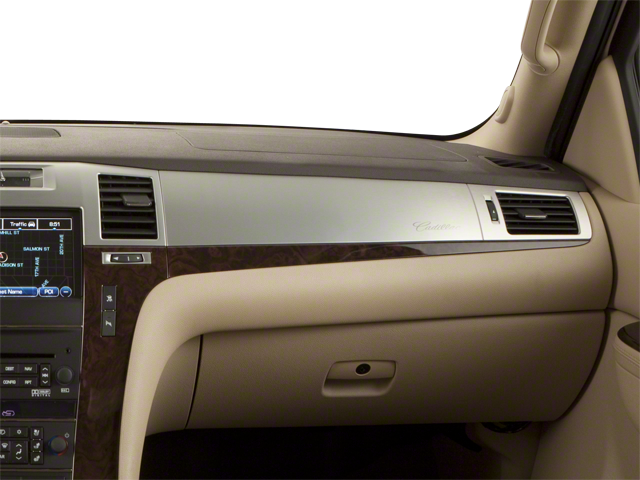

• Vehicle Name: Cadillac Escalade ESV
• Body Style: 4 Door
• Body Code: 130" WB
• Emissions
• EPA Greenhouse Gas Score: 1
• Tons/yr of CO2 Emissions @ 15K mi/year: 12.4
